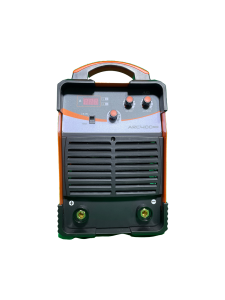

ARC-400
• IGBT MODULE INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
•SUITABLE FOR ALL ACID , BASIC ,STAINLESS AND LOW HYDROGEN ELECTRODES
Description
IGBT INVERTER. Soft switching technology Easy and simple operation pannel Optional cable remote control conveinient operation Excelent welding quality, optimum ARC dynamic characteristics. Suitable for all acid, basic, stainless steel, low hydrogen electrodes Comes with a feature of hot start, lift -arc tig and O.C & O.H protection. Rated input power supply Three Phase AC415 (+ -) 15% 50/60Hz Rated input capacity 18.8 KVA Power factor 0.93 Rated No-Load Voltage (V) 65 Rated maximum output (A/V) 400/36 Welding current range 30-400A Arc force current 0-140A Arc ignition current range (A) 0-140A Working temperature range -10-+40 humidity <90% (no water condense ) cooling mode is forced air cooling rated duty cycle 60% efficiency 85% insulation grade F weight 19kg
