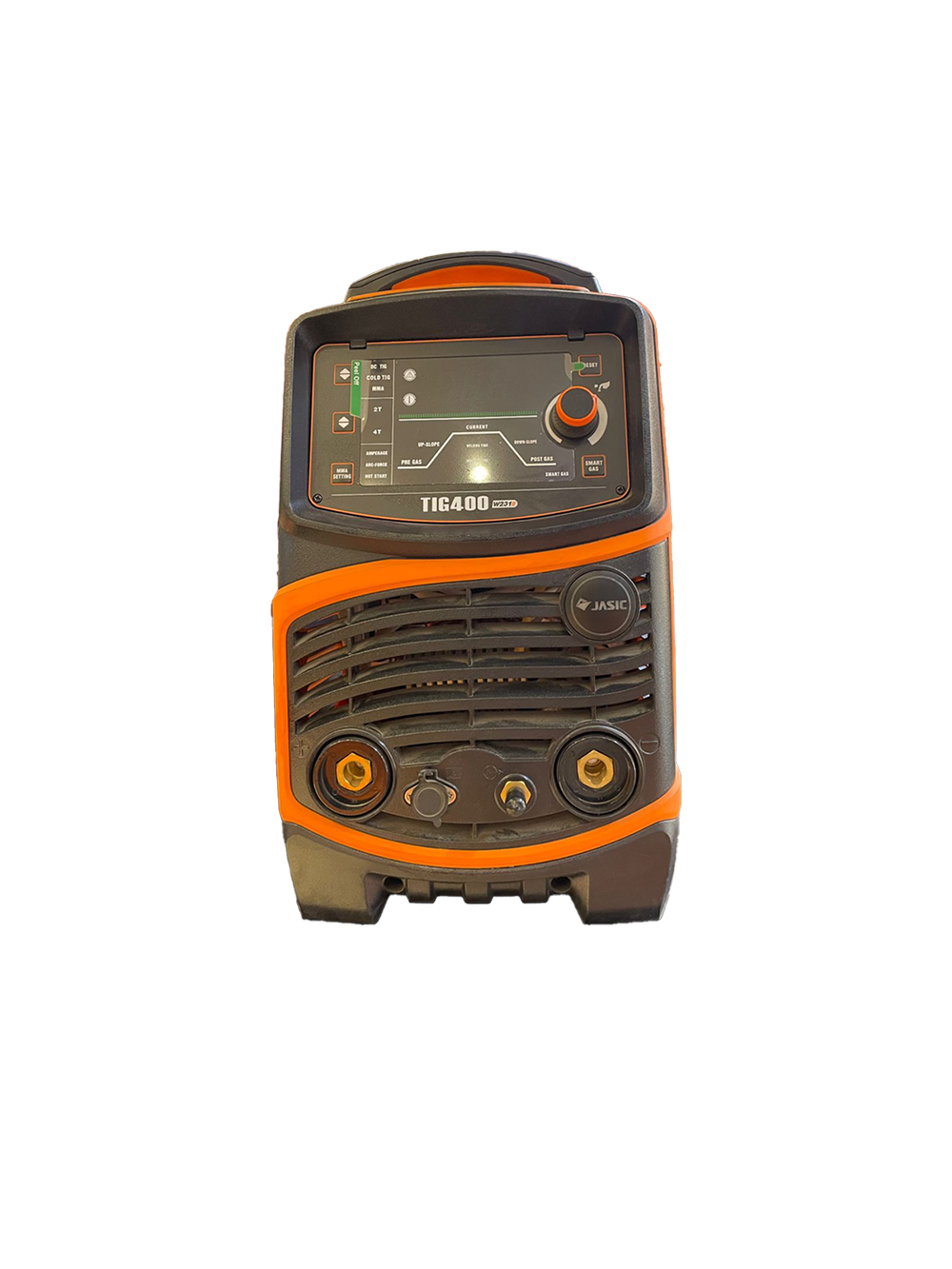

TIG-400 W231
JASIC TIG400 offers reliable welding proformance and a user-friendly experience.
Brand:
Digital welding ensures more refined welding performance. Min 5 Amp for 0.5mm thin metal. Extremely excellent welding performance when under pulse mode. Multiple TIG functions including not only for 2T and 4T operations, but also repeat welding, so as to satisfy different welding demands. one control PCB board, compact and easy to repair. Offers HF DC TIG. HF Pulse TIG and MMA . 2T/4T, repeat. Digital interface. Technical paramters: (FOR MMA) Rated input power supply 3-Phase 415V (+ -) 15% 50Hz Rated input capacity(KVA) 18.8 Pwer factor 0.9 Rated no-load voltage(V) 66 Rated maximum output (A/V) 400/36 welding current range(A) 10-400 ARC Force current range 0-200 ARC Ignition current range 0-200 output characteristics CC. (FOR TIG): Rated maximum output A/V 400/26 welding current range 10-400 Pre-flow time range(S) 0.2-10 Initial current range(A) 10-400 Pilot ARC current range(A) 10-400 upslope time range(S) 0-10 Peak current range(A) 10-400 downslope time range(S) 0-10 Post flow time range(S) 0-15 ARC Ignition mode: HF Rated duty cycle: 60% Efficiency is 85% Insulation grade is F dimentions are 595x297x528 Weight is 30kg
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
RELATED PRODUCTS
•PROFESSIONAL QUALITY IGBT INVERTER
•ANTI STICK, ARC-FORCE LIFT TIG
•HOT START FOR THOSE DIFFICULT TO STRIKE
ELECTRODES
• LIGHTWEIGHT AND MODERN DESIGN
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE
•AUTO COMPENSATION FOR VOLTAGE
FLUCTUATION
•CAN WELD UPTO 3.2MM
MIG-350 N 216
Triple function machine covering MIG welding,
MMA welding and gasless –FCAW welding
Input Voltage(V)
AC380V±15%(3phases) 50/60Hz
• High duty cycle ensures high performance welding
over longer durations
Input voltage current
21.2
Power capacitance(KVA)
14
• Our advanced control circuitry increases the MIG
welding function
MMA welding current range(A)
20~350
MIG current range(A)
50~350
• Stable welding arc,minimal spatter &beautiful
shaping
MIG voltage range(V)
15~38
Duty cycle imax(40℃）
350A/40%
• High welding efficiency
MIG-400
. POWER OUTPUT: WITH A 500A OUTPUT, THE JASIC
MIG-500 N388 IS DESIGNED FOR DEMANDING
INDUSTRIAL WELDING TASKS.
. INPUT VOLTAGE: OPERATES WITH A 3-PHASE 380V
POWER SUPPLY, ENSURING STABLE PERFORMANCE.
· WELDING PROCESS: SUPPORTS MIG, MAG, AND MMA INVERTER EXPERT
WELDING, OFFERING VERSATILITY FOR A WIDE RANGE
OF MATERIALS INCLUDING STEEL, STAINLESS STEEL,
AND ALUMINUM.
· DUTY CYCLE: PROVIDES A 60% DUTY CYCLE AT 500A
FOR CONTINUOUS, HIGH-QUALITY WELDING.
· ADVANCED INVERTER TECHNOLOGY: UTILIZES
INVERTER TECHNOLOGY FOR IMPROVED ENERGY EFFICIENCY, REDUCED SIZE, AND LIGHTWEIGHT
DESIGN.
TIG-200 W2H3
• INTEGRATED VERTICAL PCB STRUCTURE FOR
EASY TESTING
•ADVANCED IGBT INVERTER TECHNOLOGY FOR
EFFICIENT POWER CONVERSION AND RELIABILITY.
•HF ARC IGNITION FOR PRECISE, CLEAN ARC STARTS
WITHOUT TUNGSTEN CONTAMINATION.
•SUPPORTS BOTH TIG AND MMA WELDING MODES.
•2T/4T TRIGGER FUNCTIONALITY FOR FLEXIBLE
WELDING CONTROL.
•SMART FAN SYSTEM FOR ENERGY SAVINGS AND
REDUCED DUST INTAKE.
•OVER-TEMPERATURE AND OVER-CURRENT
PROTECTION FOR SAFER OPERATION.
•DIGITAL DISPLAY FOR ACCURATE PARAMETER.
