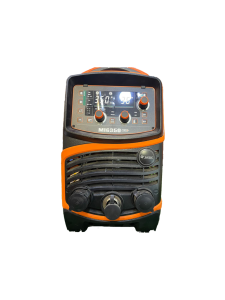

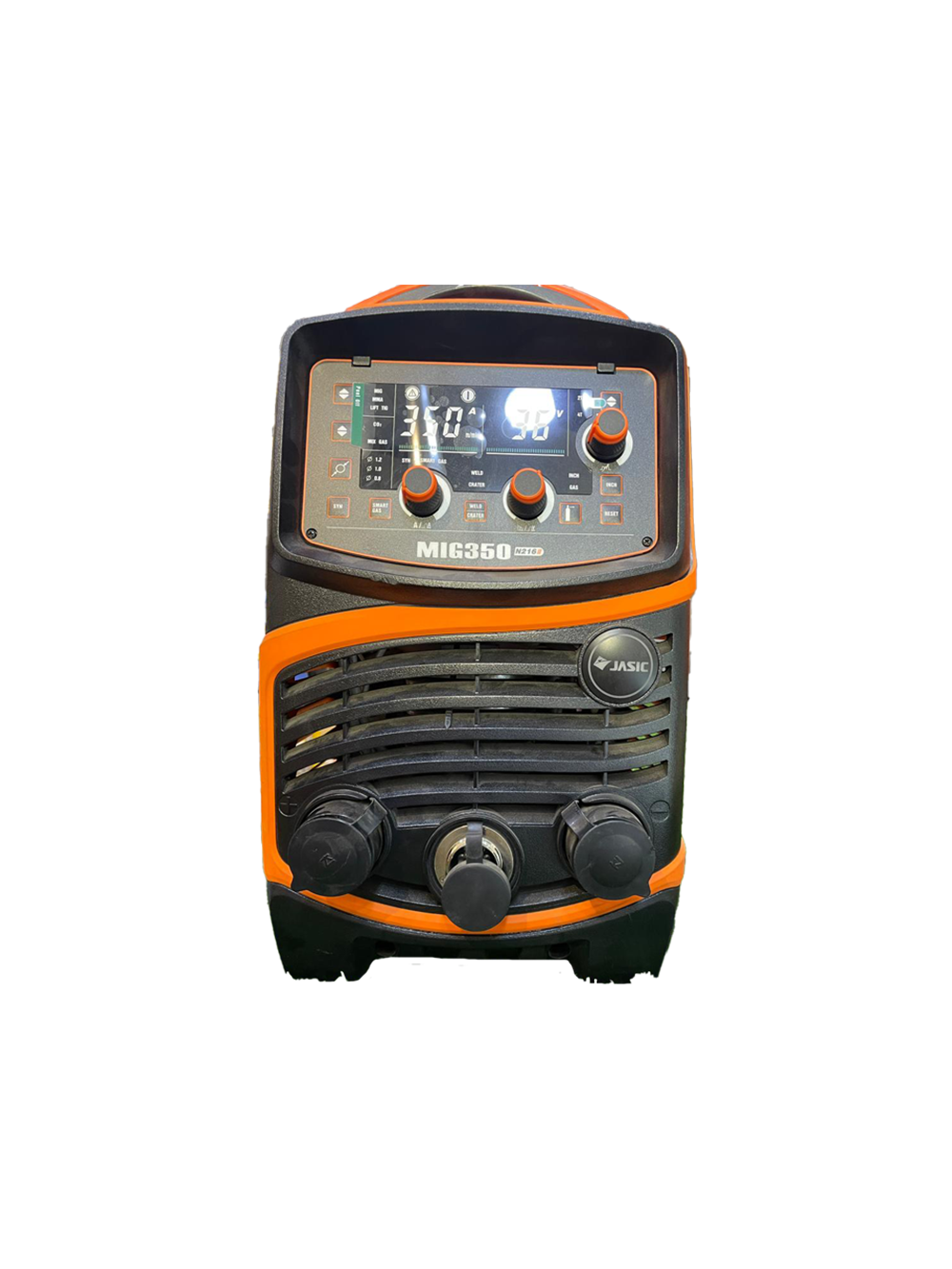

MIG-350 N 216
Triple function machine covering MIG welding,
MMA welding and gasless –FCAW welding
Input Voltage(V)
AC380V±15%(3phases) 50/60Hz
• High duty cycle ensures high performance welding
over longer durations
Input voltage current
21.2
Power capacitance(KVA)
14
• Our advanced control circuitry increases the MIG
welding function
MMA welding current range(A)
20~350
MIG current range(A)
50~350
• Stable welding arc,minimal spatter &beautiful
shaping
MIG voltage range(V)
15~38
Duty cycle imax(40℃）
350A/40%
• High welding efficiency
Brand:
The MIG-350 (Model No. N216) is a high-performance inverter-based MIG/MAG welding machine, designed to tackle heavy-duty industrial applications and high-output welding tasks. With IGBT inverter technology, it ensures stable arc performance, high efficiency, and low spatter, producing clean and consistent welds on materials like mild steel, stainless steel, and flux-cored wire._x000D_
_x000D_
Operating on a three-phase AC400V (50/60Hz) input, the MIG-350 (Model No. N216) offers a welding current range of 30A to 350A, making it suitable for both thin sheet metal and thick material welding. It boasts a duty cycle of 350A @ 60%, ensuring it performs effectively for extended welding tasks. The no-load voltage is approximately 60V, contributing to excellent arc ignition and stability._x000D_
_x000D_
Equipped with an advanced digital control panel, this model allows precise adjustments to welding voltage, wire feed speed, and current, giving you full control over your welds. The MIG-350 (Model No. N216) supports wire diameters from 0.8mm to 1.6mm, providing flexibility across different welding projects. Safety features include thermal and overload protection, and the fan-on-demand cooling system reduces energy consumption and lowers noise._x000D_
_x000D_
Designed for durability, the MIG-350 has a compact chassis with dimensions of 540 × 300 × 460 mm and weighs 22 kg, making it portable yet rugged enough for demanding work environments. It carries an IP21S protection rating, offering protection against dust and water ingress, which is ideal for industrial conditions._x000D_
_x000D_
The MIG-350 (Model No. N216) is the perfect solution for professional welders needing high output, reliable performance, and precise control for heavy-duty fabrication, production welding, and maintenance tasks._x000D_
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
RELATED PRODUCTS
ARC-400
• IGBT MODULE INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
•SUITABLE FOR ALL ACID , BASIC ,STAINLESS AND LOW HYDROGEN ELECTRODES
ARC-630
• IGBT MODULE INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
•SUITABLE FOR ALL ACID , BASIC ,STAINLESS AND
LOW HYDROGEN ELECTRODES
JET20 ARC-400
•SYNERGY MMA FUNCTION, AUTO-MATCHING
WELDING PARAMETERS IN ACCORDING TO THE
SELECTED WELDING ELECTRODE DIAMETERS
• LIFT TIG, EASY ARC STARTING AND ANTI-STICK
•HIGH OCV, STRONG OUTPUT: CAPABLE OF WELDING
WITH 4.0MM ELECTRODES WORK ON 200M
EXTENSION CORD
•CAPABLE OF ALL DAY WELDING WITH 5.0MM
ELECTRODE
•CONSISTENT ARC PERFORMANCE
•COMPATIBLE WITH MOST GENERATORS
•ON DEMAND FAN: ENERGY SAVING, NOISE
REDUCING LIMITED DUST ABSORPTION AND EXTENDED LIFE SPAN

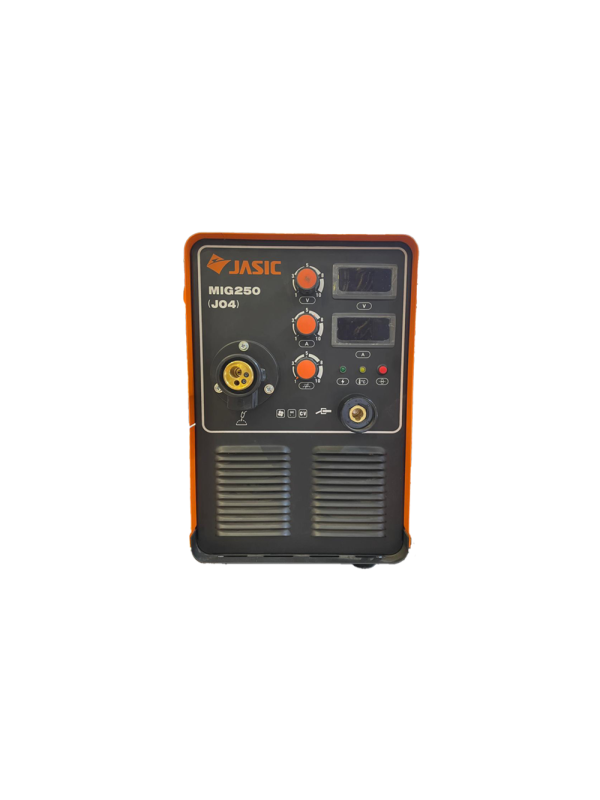

MIG-250 J04
