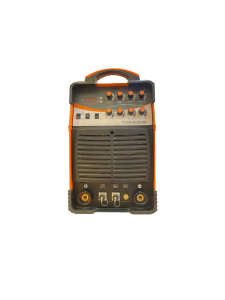

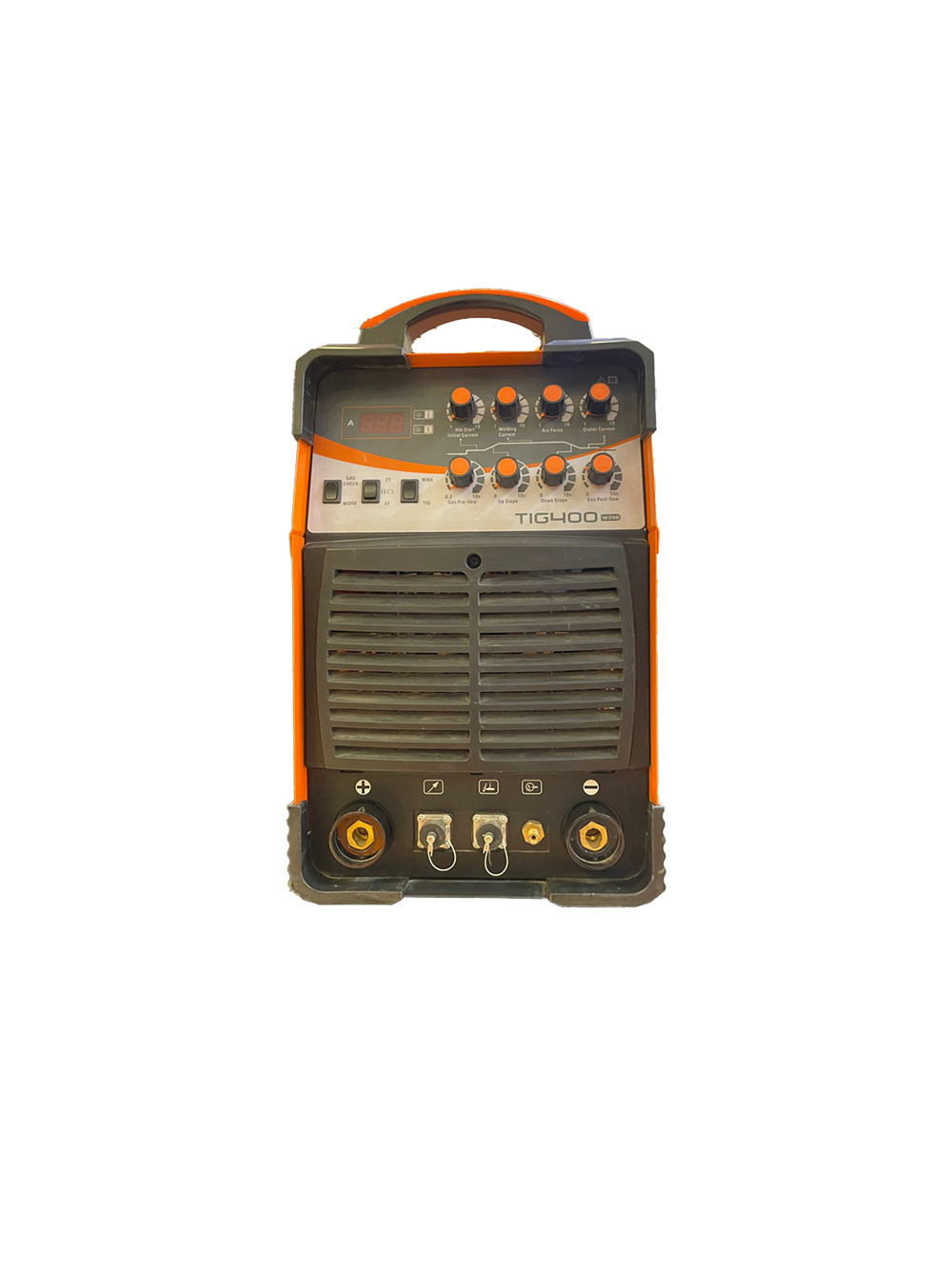

TIG-400 W 398
•DIGITAL WELDING CIRCUIT DESIGNE ENSURES MORE REFINED WELDING PERFORMANCE.
•MIN 5A CURRENT FOR 0.5MM THIN PLATES.
•EXTREMELY EXCELLENT WELDING PERFORMANCE WHEN UNDER PULSE MODE.
•MULTIPLE TIG FUNCTIONS INCLUDING NOT ONLY FOR 2T AND 4T
•OPERATIONS, BUT ALSO REPEAT WELDING, SO AS TO SATISFY DIFFERENT WELDING DEMANDS.
•THREE PROOFING DESIGNE TO SATISFY EXTREMELY HARSH WORKING ENVIRONMENT.
•ONLY ONE CONTROL PCB, COMPACT AND AVAILABLE.
•RESERVED DIGITAL INTERFACE FOR AUTO WELDING EQUIPMENT
Brand:
Multi-functional, spot welding. Dash-Arc (for HF TIG only) delivers 99+% arc striking success rate. High consistency & high ignition response rate (50-60ms). Cold welding with low heat input, producing fine welding seam, suitable for 0.2mm or thicker thin plates, model seams etc. concentrated arc with high stiffness. Smart has: automatic post flow time adjustment for MIG/MAG/TIG according to actual welding current and time etc 40% overall gas saving. one-demand fan: energy saving, noise reduction, limited dust absorbtion and extended life span. parameters: Rated input voltage 3Phase AC380 + – 15% Rated input power capacity (kVA) 14.5@TIG 19@MMA Power factor 0.85 Rated no-load voltage (V) 67 (FOR TIG): welding current 10-400A Preflow time(S) 0-5 Post flow time(S) 0-10 Upslope time(S) 0-10 Downslope time(S) 0-10 ARC starting HF arc ignition. (FOR COLD WELDING): Welding current (A) 50-400 Welding time (ms) 1-900 Time interval (S) 0.1-10 (FOR MMA): Welding current(A) 20-400A ARC force current(A) 0-150A Hot start current(A) 0-60A Others: Rated duty cycle@40C 30% Efficiency 85% Protection class IP21S Insulation class H Dimentions 610x268x452 Weight 25kg
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
RELATED PRODUCTS
 INVERTER IGBT
•MORE USER FRIENDLY AND COST EFFECTIVE
• INTEGRAL 1-PCB STRUCTURE EXTREMELY
COMPACT AND PORTABLE WITH LIGHT WEIGHT
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE
•MMA, BUILT IN ARC START, O.H & O.C INDICATOR
•PROFESSIONAL QUALITY IGBT INVERTER
•ANTI STICK, ARC-FORCE LIFT TIG
•HOT START FOR THOSE DIFFICULT TO STRIKE
ELECTRODES
• LIGHTWEIGHT AND MODERN DESIGN
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE
•AUTO COMPENSATION FOR VOLTAGE
FLUCTUATION
•CAN WELD UPTO 3.2MM
•IGBT INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE-CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•EASY ARC STARTING, MINIMAL SPATTER
•ANTI STICK, ARC FORCE LIFT TIG
JASIC TIG400 offers reliable welding proformance and a user-friendly experience.
TIG-500 PACDC
•SUPPORTS MULTIPLE WELDING MODES INCLUDING
DC/AC MMA, DC/AC TIG, DC PULSE TIG, AND AC
SQUARE WAVE TIG.
•DIGITAL CONTROL PANEL ENSURES EASY AND
CONVENIENT OPERATION.
•EQUIPPED WITH A PROTECTION SYSTEM FEATURING
6 SAFETY PARAMETERS FOR HIGH RELIABILITY.
•STORES UP TO 5 FREQUENTLY USED WELDING PARAMETER SETS.
•PROVIDES EXCELLENT MMA PERFORMANCE WITH PRECISE ARC START CONTROL, LESS SPATTER, AND REFINED WELDING BEADS.
•OFFERS 15 TIG MODES TO MEET VARIOUS WELDING
•COMPATIBLE WITH AUTOMATED AND ROBOTIC WELDING
