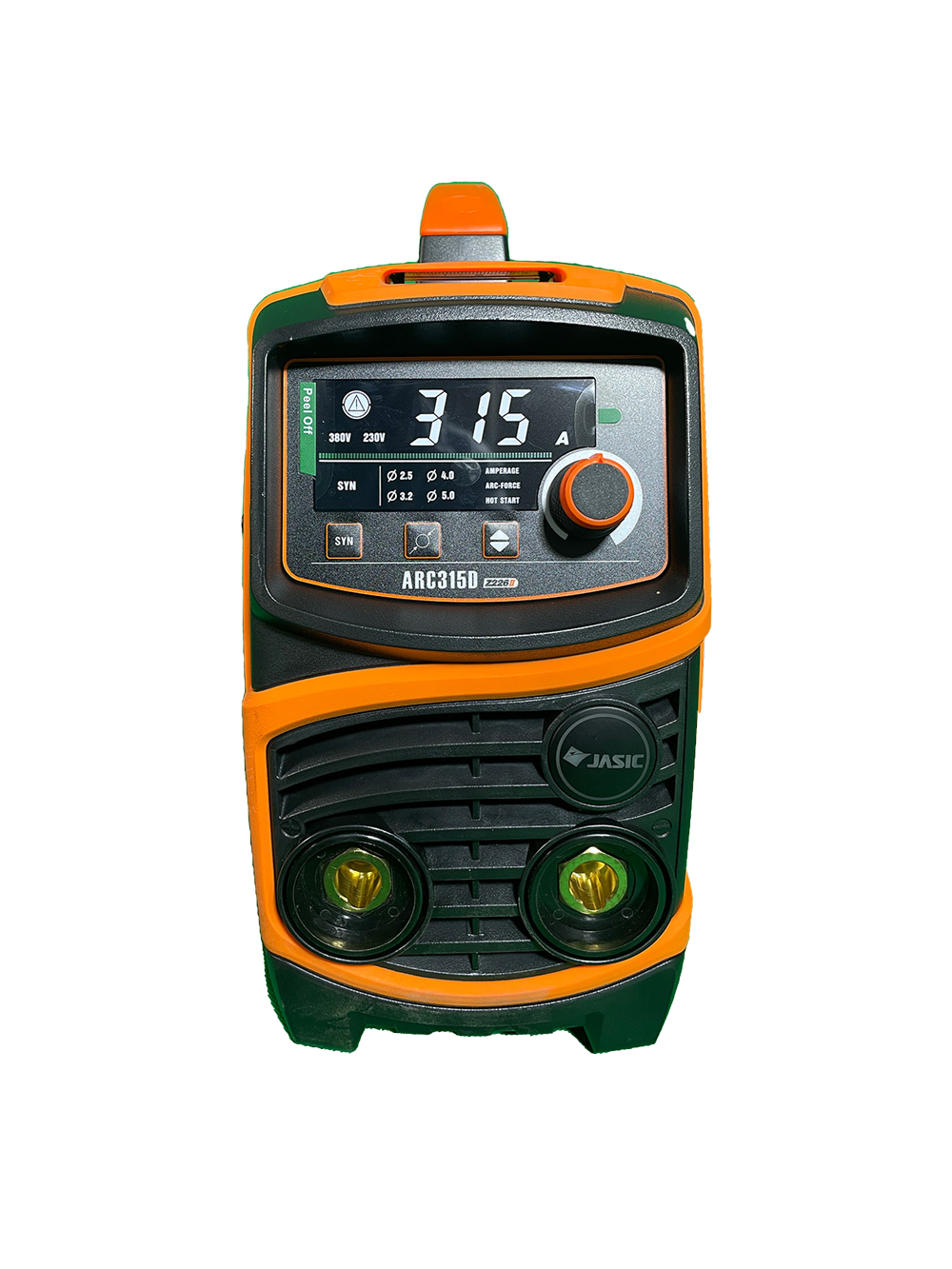

JET20 ARC-315D
MULTI VOLTAGE (1PH 230/380V, 3PH 380V)
•WILD INPUT POWER RANGE (140-510V)
•HIGH OCV, STRONG OUTPUT (CAPABLE OF WELDING
UPTO 4.0MM ELECTRODE) AND WORK ON 50MM
EXTENSION CORD
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE (SS WELDING)
•SYNERGY MMA FUNCTION, AUTO MATCHING
WELDING PARAMETERS IN ACCORDING WITH
WELDING ELECTRODE DIAMETERS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
Description
IGBT INVERTER. Multi-voltage single-phase – 380V, three-phase 380V. Wide input power range 140V-510V. Synergy MMA function, auto matching welding parameters in according with welding electrode diameters. High OCV, strong output: capable of welding with 4.0mm electrodes and work on 50m extension cord. consistent ARC force performance. compatible with most generators in the market. On-demand fan, energy saving, noise-reducing, limited dust absorbtion and extended life span. Input voltage single phase AC230 (+ -) 15% Rated input power capacity (KVA) 7.9 Power factor 0.77 Rated no load voltage(V) 65 welding current (A) 20-180 ARC FORCE current 0-100 HOT START current(A) 0-100 single phase AC380 (+ -) 15% Rated input power capacity (KVA) 11.3 Power factor 0.7 Rated no load voltage(V) 60 welding current (A) 20-230 ARC FORCE current 0-100 HOT START current(A) 0-100 Rated duty cycle @40C 25% Three phase AC380 (+ -) 15% Rated input power capacity (KVA) 9.3 Power factor 0.85 Rated no load voltage(V) 60 welding current (A) 20-230 ARC FORCE current 0-100 HOT START current(A) 0-100 Efficiency 85% Protection class IP21S Insulation class H Dimentions (mm) 510x210x385 Weight 6.39kg
