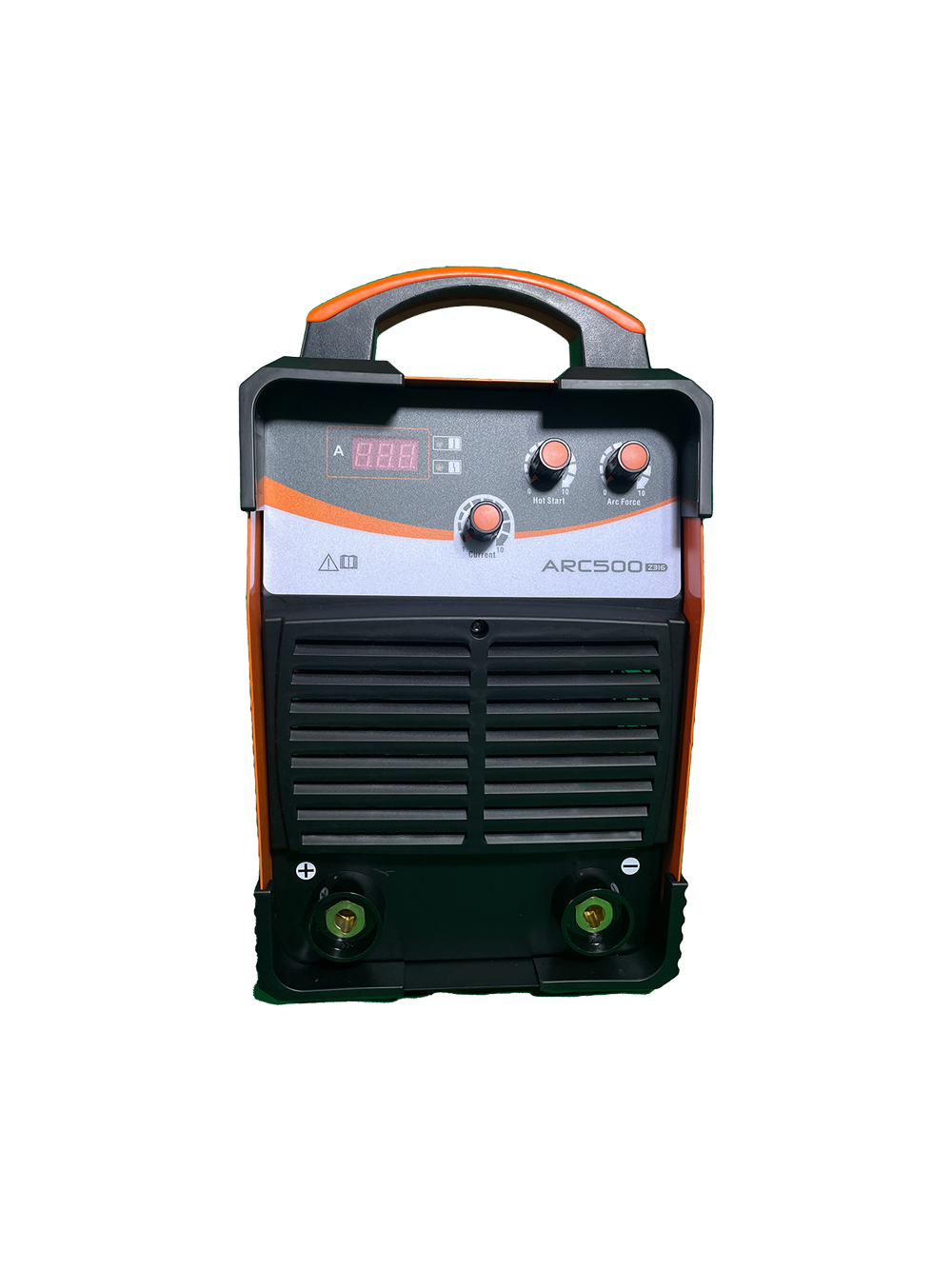

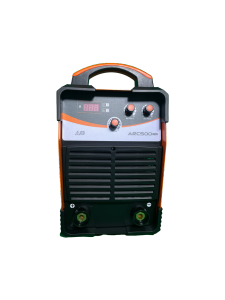

ARC-500
• IGBT MODULE INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
•SUITABLE FOR ALL ACID , BASIC ,STAINLESS AND
LOW HYDROGEN ELECTRODES
Description
IGBT INVERTER TECHNOLOGY, Soft switching technology with easy and simple operation panel. Machines supports optional remote-control convenient operatation. Excellent welding quality, optimum arc dynamic characteristics. Suitable for all basic and special electrodes except aluminum. special features involve, hotstart, arc force, lift arc-TIG and O.C & O.H protection. the series comes with water resistence, dust protection and shock resistence. the machine is also generator compatible. Input voltage (V) AC415V(+ -) 15% 50/60Hz Rated output power (KW) is 20kw Rated input power capacity (KVA) is 29.4 rated input current(A) is 40A wealding current 30-500A ARC force current range (A) 0-170A ARC ignition current ramge 0-150A no-load voltage is 80 + – 5 efficiency is 85% power factor 0.8 protection class IP21S Insulation class F dimentions 618x330x441 weight is 23kg
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
 INVERTER IGBT
•MORE USER FRIENDLY AND COST EFFECTIVE
• INTEGRAL 1-PCB STRUCTURE EXTREMELY
COMPACT AND PORTABLE WITH LIGHT WEIGHT
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE
•MMA, BUILT IN ARC START, O.H & O.C INDICATOR
ARC-250
PROFESSIONAL QUALITY IGBT INVERTER
•MMA/DC LIFT TIG
•HOT START IGNITION WITH ANTI STICK
•VOLTAGE REDUCTION DEVICE FOR SAFE WELDING
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE (SS WELDING)
•40KHZ INVERTER FREQUENCY, HIGH EFFICIENCY
•AUTO COMPENSATION FOR VOLTAGE
FLUCTUATION
•ADVANCED SINGLE PCB CONSTRUCTION
• 16-25 PANEL SOCKETS
EVO20 ARC-200 PFC
•RUGGED, ERGONOMIC DESIGN, CLEAR VISION
•TECHNOLOGY
• INTELLIGENT SYNERGIC CONTROL
•SMART LIFT TIG, QUICK FACTORY RESET
•ADAPTABLE WIDE VOLTAGE RANGE
•ANTI-STICK, ADJUSTABLE HOT START AND ARC
•POWER FACTOR CORRECTION (PFC)
•ABAP: ACTIVE BALANCING AIR PASSAGE
•VOLTAGE REDUCTION DEVICE(VRD)
•KEY POWER ELECTRONIC COMPONENT
PROTECTION
•COMPLETE WITH PROTECTIVE CASE AND MMA LEADS
EVO20 TIG-200
•OPERATES ON 230V ±15% AC INPUT, PROVIDING
STABLE PERFORMANCE STANDARD POWER SOURCES.
•OFFERS 62V OPEN-CIRCUIT VOLTAGE FOR
SMOOTH AND RELIABLE ARC STARTS.
•TIG MODE DELIVERS 5–200A OUTPUT AT A 25%
DUTY CYCLE WITH 6.2KVA INPUT CAPACITY.
•MMA MODE PROVIDES 10–160A OUTPUT AT A 20%
DUTY CYCLE WITH 6.7KVA INPUT CAPACITY.
•ENSURES 86% EFFICIENCY WITH A 0.68 POWER
FACTOR FOR EFFECTIVE ENERGY USAGE.
• LOW IDLE POWER CONSUMPTION, USING 25W IN
MMA AND 2.4W IN TIG MODE.
MIG-350 N 216
Triple function machine covering MIG welding,
MMA welding and gasless –FCAW welding
Input Voltage(V)
AC380V±15%(3phases) 50/60Hz
• High duty cycle ensures high performance welding
over longer durations
Input voltage current
21.2
Power capacitance(KVA)
14
• Our advanced control circuitry increases the MIG
welding function
MMA welding current range(A)
20~350
MIG current range(A)
50~350
• Stable welding arc,minimal spatter &beautiful
shaping
MIG voltage range(V)
15~38
Duty cycle imax(40℃）
350A/40%
• High welding efficiency
MIG-400
. POWER OUTPUT: WITH A 500A OUTPUT, THE JASIC
MIG-500 N388 IS DESIGNED FOR DEMANDING
INDUSTRIAL WELDING TASKS.
. INPUT VOLTAGE: OPERATES WITH A 3-PHASE 380V
POWER SUPPLY, ENSURING STABLE PERFORMANCE.
· WELDING PROCESS: SUPPORTS MIG, MAG, AND MMA INVERTER EXPERT
WELDING, OFFERING VERSATILITY FOR A WIDE RANGE
OF MATERIALS INCLUDING STEEL, STAINLESS STEEL,
AND ALUMINUM.
· DUTY CYCLE: PROVIDES A 60% DUTY CYCLE AT 500A
FOR CONTINUOUS, HIGH-QUALITY WELDING.
· ADVANCED INVERTER TECHNOLOGY: UTILIZES
INVERTER TECHNOLOGY FOR IMPROVED ENERGY EFFICIENCY, REDUCED SIZE, AND LIGHTWEIGHT
DESIGN.
TIG-200P W224
• INVERTER IGBT
• EASY ARC IGNITION WITH HIGH FREQUENCY.
• GOOD ARC – STIFFNESS AND CONCENTRATED
HEAD.
• STABLE ARC WITHOUT SPATTER AND GOOD
SHAPING.
• WELD WITH MATERIALS SUCH AS STEEL,
STAINLESS STEEL, TITANIUM,
COPPER, NICKEL AND THEIR ALLOYS.
• APPLICATION IN VESSEL, BIKE, DECORATION,
OUTDOOR ADVERTISING, ETC.
• HF TIG
• O.H. INDICATOR
• DIGITAL DISPLAY METER
TIG-315 PACDC
•MOST FIT INVERTER TECHNOLOGY.
•AC TIG APPLIES TO ALUMINUM, MAGNESIUM AND OTHER NON-FERROUS METAL WELDING.
•EXCELLENT PERFORMANCE WITH PULSE TIG, SPECIAL FOR THIN MATERIAL WELDING.
•GOOD ARC-STIFFNESS AND CONCENTRATED HEAT.
•C400V±10%(3PHASES) 50/60HZ
•STABLE ARC WITHOUT SPATTER, GOOD SHAPING AND LESS DEFORMATION.
•WELD WITH MATERIALS SUCH AS STEEL, STAINLESS STEEL, TITANIUM, COPPER ,NICKEL AND THEIR ALLOYS.
•APPLICATION IN VESSEL , BIKE ,DECORATION, OUTDOOR ADVERTISING, ETC
