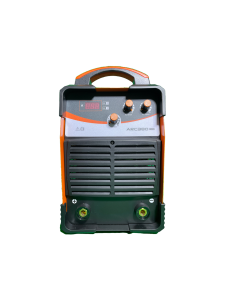

ARC-380
•IGBT INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE-CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•EASY ARC STARTING, MINIMAL SPATTER
•ANTI STICK, ARC FORCE LIFT TIG
Description
IGBT INVERTER. Soft switching technology Easy and simple operation pannel Optional cable remote control conveinient operation Excelent welding quality, optimum ARC dynamic characteristics. Suitable for all acid, basic, stainless steel, low hydrogen electrodes Comes with a feature of hot start, lift -arc tig and O.C & O.H protection. Rated input power supply Three Phase AC415 (+ -) 15% 50/60Hz Rated input capacity 16 KVA Power factor 0.93 Rated No-Load Voltage (V) 67 Rated maximum output (A/V) 380/35 Welding current range 30-380A Arc force current 0-140A Arc ignition current range (A) 0-140A Working temperature range -10-+40 humidity <90% (no water condense ) cooling mode is forced air cooling rated duty cycle 40% efficiency 85% insulation grade F weight 19kg
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

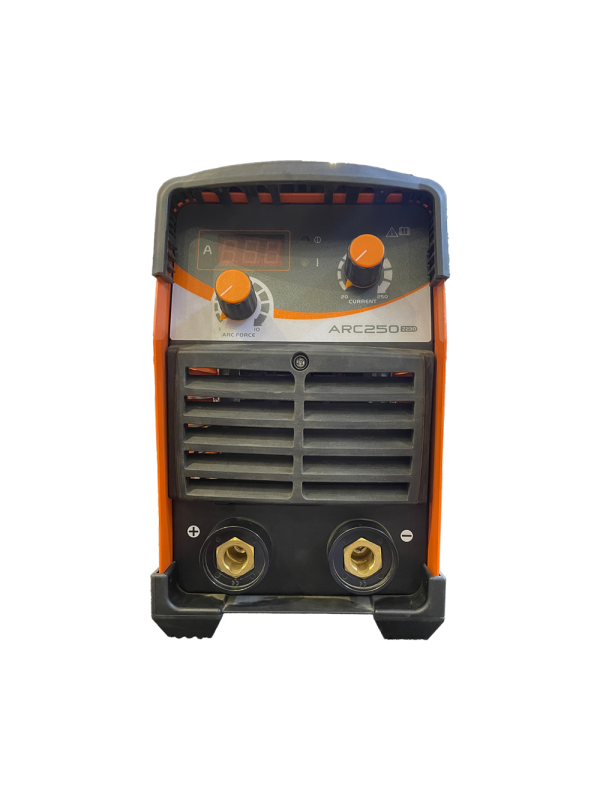

ARC-250
PROFESSIONAL QUALITY IGBT INVERTER
•MMA/DC LIFT TIG
•HOT START IGNITION WITH ANTI STICK
•VOLTAGE REDUCTION DEVICE FOR SAFE WELDING
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE (SS WELDING)
•40KHZ INVERTER FREQUENCY, HIGH EFFICIENCY
•AUTO COMPENSATION FOR VOLTAGE
FLUCTUATION
•ADVANCED SINGLE PCB CONSTRUCTION
• 16-25 PANEL SOCKETS
ARC-400
• IGBT MODULE INVERTER TECHNOLOGY
•SOFT SWITCHING TECHNOLOGY
•EASY AND SIMPLE OPERATION PANEL
•OPTIONAL CABLE REMOTE CONTROL GUARANTE
CONVENIENT REMOTE OPERATION
•EXCELLENT WELDING QUALITY, OPTIMUM ARC
DYNAMIC CHARACTERISTICS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
•SUITABLE FOR ALL ACID , BASIC ,STAINLESS AND LOW HYDROGEN ELECTRODES
EVO20 TIG-200
•OPERATES ON 230V ±15% AC INPUT, PROVIDING
STABLE PERFORMANCE STANDARD POWER SOURCES.
•OFFERS 62V OPEN-CIRCUIT VOLTAGE FOR
SMOOTH AND RELIABLE ARC STARTS.
•TIG MODE DELIVERS 5–200A OUTPUT AT A 25%
DUTY CYCLE WITH 6.2KVA INPUT CAPACITY.
•MMA MODE PROVIDES 10–160A OUTPUT AT A 20%
DUTY CYCLE WITH 6.7KVA INPUT CAPACITY.
•ENSURES 86% EFFICIENCY WITH A 0.68 POWER
FACTOR FOR EFFECTIVE ENERGY USAGE.
• LOW IDLE POWER CONSUMPTION, USING 25W IN
MMA AND 2.4W IN TIG MODE.

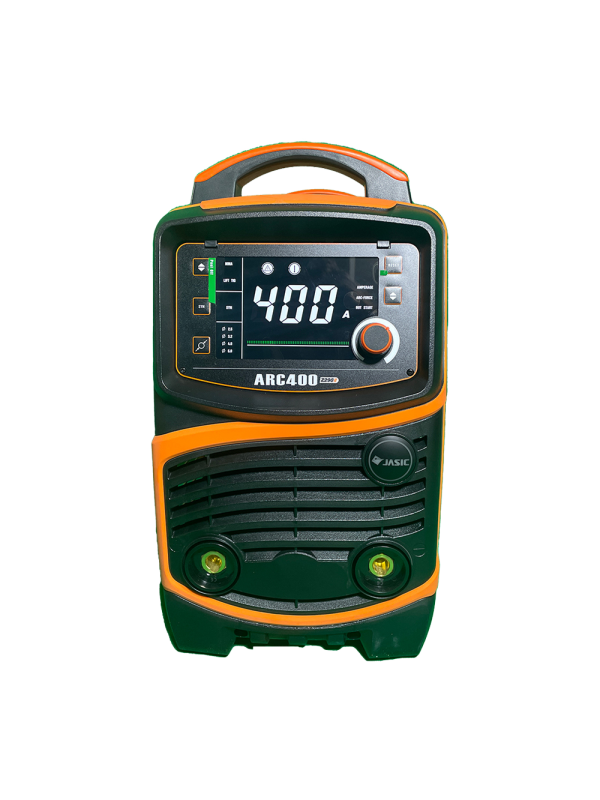

JET20 ARC-400
•SYNERGY MMA FUNCTION, AUTO-MATCHING
WELDING PARAMETERS IN ACCORDING TO THE
SELECTED WELDING ELECTRODE DIAMETERS
• LIFT TIG, EASY ARC STARTING AND ANTI-STICK
•HIGH OCV, STRONG OUTPUT: CAPABLE OF WELDING
WITH 4.0MM ELECTRODES WORK ON 200M
EXTENSION CORD
•CAPABLE OF ALL DAY WELDING WITH 5.0MM
ELECTRODE
•CONSISTENT ARC PERFORMANCE
•COMPATIBLE WITH MOST GENERATORS
•ON DEMAND FAN: ENERGY SAVING, NOISE
REDUCING LIMITED DUST ABSORPTION AND EXTENDED LIFE SPAN
TIG-200 P ACDC
• INVERTER IGBT, AUTOMATIC PARAMETER SAVING
•AC TIG FOR ALUMINUM AND MAGNESIUM WELDING
•DIGITAL CONTROL, MCU TECHNOLOGY,
MULTI-FUNCTION FOR PRECISION WELDING.
•REAL TIME DISPLAY OF WELDING CURRENT.
•EXCELLENT PERFORMANCE WITH PULSE TIG ,
SPECIAL FOR THIN MATERIAL WELDING .
•STABLE ARC WITHOUT SPATTER, GOOD SHAPING
AND LESS DEFORMATION.
•WELD WITH MATERIALS SUCH AS STEEL, STAINLESS
STEEL TITANIUM,COPPER ,NICKEL AND THEIR ALLOYS

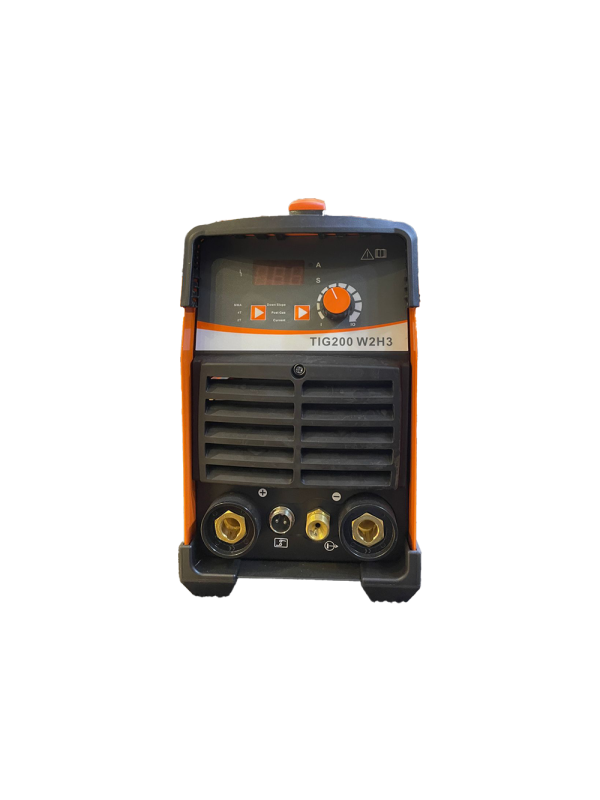

TIG-200P W224
• INVERTER IGBT
• EASY ARC IGNITION WITH HIGH FREQUENCY.
• GOOD ARC – STIFFNESS AND CONCENTRATED
HEAD.
• STABLE ARC WITHOUT SPATTER AND GOOD
SHAPING.
• WELD WITH MATERIALS SUCH AS STEEL,
STAINLESS STEEL, TITANIUM,
COPPER, NICKEL AND THEIR ALLOYS.
• APPLICATION IN VESSEL, BIKE, DECORATION,
OUTDOOR ADVERTISING, ETC.
• HF TIG
• O.H. INDICATOR
• DIGITAL DISPLAY METER

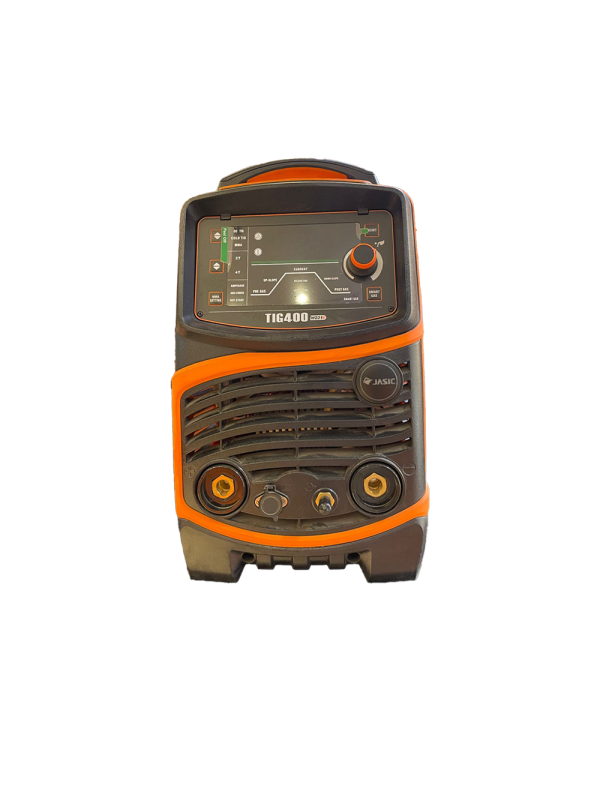

TIG-400 W 398
•DIGITAL WELDING CIRCUIT DESIGNE ENSURES MORE REFINED WELDING PERFORMANCE. •MIN 5A CURRENT FOR 0.5MM THIN PLATES.
•EXTREMELY EXCELLENT WELDING PERFORMANCE WHEN UNDER PULSE MODE.
•MULTIPLE TIG FUNCTIONS INCLUDING NOT ONLY FOR 2T AND 4T
•OPERATIONS, BUT ALSO REPEAT WELDING, SO AS TO SATISFY DIFFERENT WELDING DEMANDS.
•THREE PROOFING DESIGNE TO SATISFY EXTREMELY HARSH WORKING ENVIRONMENT.
•ONLY ONE CONTROL PCB, COMPACT AND AVAILABLE.
•RESERVED DIGITAL INTERFACE FOR AUTO WELDING EQUIPMENT
