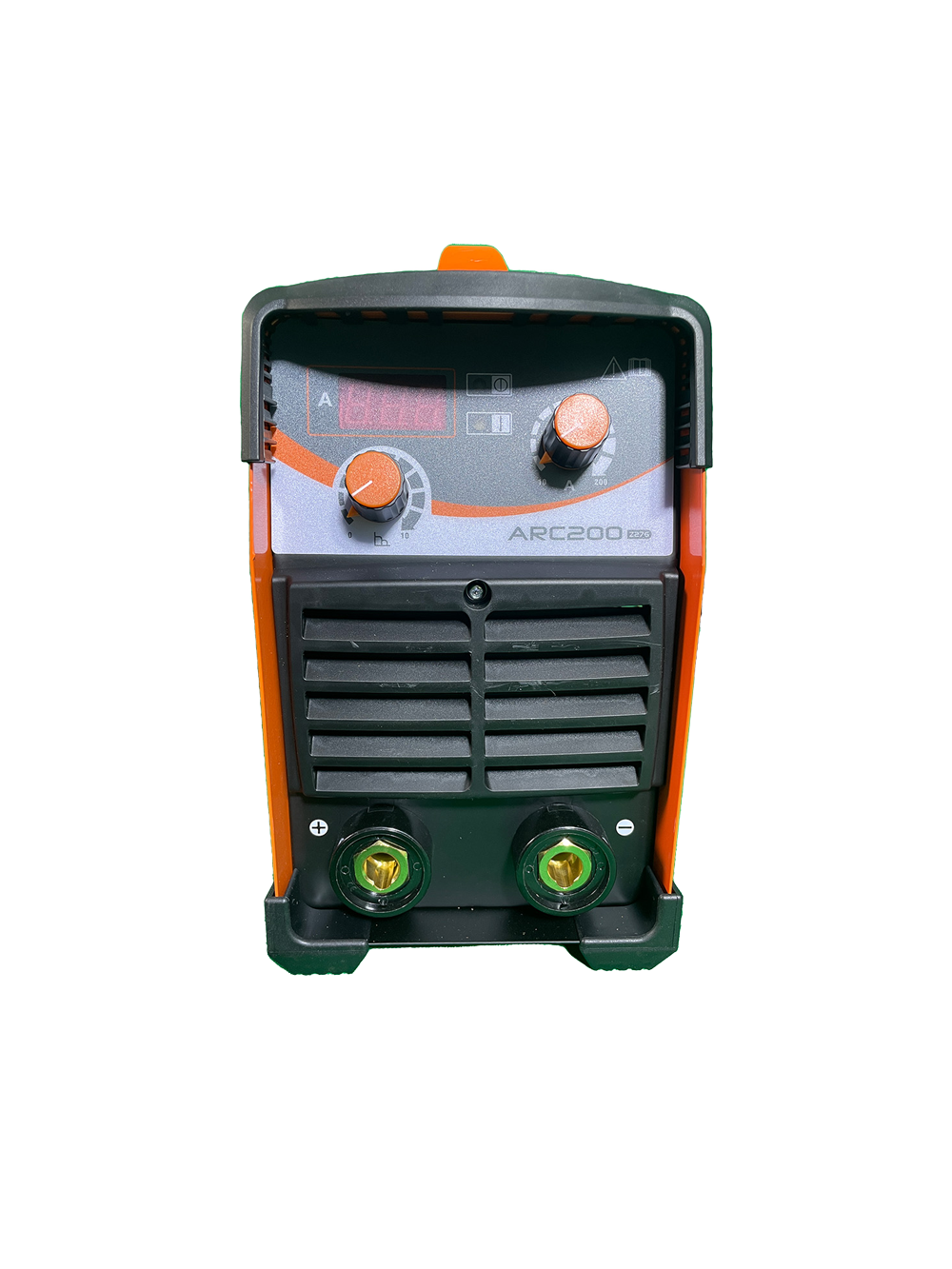

ARC-200
•PROFESSIONAL QUALITY IGBT INVERTER
•ANTI STICK, ARC-FORCE LIFT TIG
•HOT START FOR THOSE DIFFICULT TO STRIKE
ELECTRODES
• LIGHTWEIGHT AND MODERN DESIGN
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE
•AUTO COMPENSATION FOR VOLTAGE
FLUCTUATION
•CAN WELD UPTO 3.2MM
Description
IGBT INVERTER More user-friendly, more cost-effective. Current range 20-200A Rated duty cycle(%):40% No load voltage 70V Protection class IP21S Insulation classF size 430x168x312 Weight 8kg Suitable for E6013, E7018 etc with 2.0 to 4.0mm electrodes Inputr power source: Single-Phase AC220V 50/60HZ Rated input power capacity: 9.4KVA No-load voltage 70V. This machine is star machine with maximum number of customers using it.
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
 INVERTER IGBT
•MORE USER FRIENDLY AND COST EFFECTIVE
• INTEGRAL 1-PCB STRUCTURE EXTREMELY
COMPACT AND PORTABLE WITH LIGHT WEIGHT
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE
•MMA, BUILT IN ARC START, O.H & O.C INDICATOR
JET20 ARC-315D
MULTI VOLTAGE (1PH 230/380V, 3PH 380V)
•WILD INPUT POWER RANGE (140-510V)
•HIGH OCV, STRONG OUTPUT (CAPABLE OF WELDING
UPTO 4.0MM ELECTRODE) AND WORK ON 50MM
EXTENSION CORD
•SUITABLE FOR 6013,7015 AND 7018 WELDING
ELECTRODE (SS WELDING)
•SYNERGY MMA FUNCTION, AUTO MATCHING
WELDING PARAMETERS IN ACCORDING WITH
WELDING ELECTRODE DIAMETERS
•ANTI-STICK ARC-FORCE LIFT TIG
•EASY ARC STARTING, MINIMAL SPATTER
JET20 TIG-200
• INVERTER IGBT, AUTOMATIC PARAMETER SAVING
•AC TIG FOR ALUMINUM AND MAGNESIUM WELDING
•DIGITAL CONTROL, MCU TECHNOLOGY,
MULTI-FUNCTION FOR PRECISION WELDING.
•REAL TIME DISPLAY OF WELDING CURRENT.
•EXCELLENT PERFORMANCE WITH PULSE TIG ,
SPECIAL FOR THIN MATERIAL WELDING .
•STABLE ARC WITHOUT SPATTER, GOOD SHAPING
AND LESS DEFORMATION.
•WELD WITH MATERIALS SUCH AS STEEL, STAINLESS
STEEL TITANIUM,COPPER ,NICKEL AND THEIR ALLOYS
MIG-200
• MIG, MMA and Lift TIG
• Lift TIG with easy arc starting and anti-stick
• Patented BIM-Tech IGBT module design for
enhanced power source reliability
• Synergic MIG, auto-matching welding current with
proper welding voltage dissipation capabilities
• Smart gas: automatic post flow time adjustment for
MIG/MAG/TIG according to actual welding current
and time, etc; 40% overall gas saving
• On-demand fan: energy-saving, noise-reducing,
limited dust absorption and extended lifespan
MIG-400
. POWER OUTPUT: WITH A 500A OUTPUT, THE JASIC
MIG-500 N388 IS DESIGNED FOR DEMANDING
INDUSTRIAL WELDING TASKS.
. INPUT VOLTAGE: OPERATES WITH A 3-PHASE 380V
POWER SUPPLY, ENSURING STABLE PERFORMANCE.
· WELDING PROCESS: SUPPORTS MIG, MAG, AND MMA INVERTER EXPERT
WELDING, OFFERING VERSATILITY FOR A WIDE RANGE
OF MATERIALS INCLUDING STEEL, STAINLESS STEEL,
AND ALUMINUM.
· DUTY CYCLE: PROVIDES A 60% DUTY CYCLE AT 500A
FOR CONTINUOUS, HIGH-QUALITY WELDING.
· ADVANCED INVERTER TECHNOLOGY: UTILIZES
INVERTER TECHNOLOGY FOR IMPROVED ENERGY EFFICIENCY, REDUCED SIZE, AND LIGHTWEIGHT
DESIGN.
TIG-200 P ACDC
• INVERTER IGBT, AUTOMATIC PARAMETER SAVING
•AC TIG FOR ALUMINUM AND MAGNESIUM WELDING
•DIGITAL CONTROL, MCU TECHNOLOGY,
MULTI-FUNCTION FOR PRECISION WELDING.
•REAL TIME DISPLAY OF WELDING CURRENT.
•EXCELLENT PERFORMANCE WITH PULSE TIG ,
SPECIAL FOR THIN MATERIAL WELDING .
•STABLE ARC WITHOUT SPATTER, GOOD SHAPING
AND LESS DEFORMATION.
•WELD WITH MATERIALS SUCH AS STEEL, STAINLESS
STEEL TITANIUM,COPPER ,NICKEL AND THEIR ALLOYS
TIG-200P W224
• INVERTER IGBT
• EASY ARC IGNITION WITH HIGH FREQUENCY.
• GOOD ARC – STIFFNESS AND CONCENTRATED
HEAD.
• STABLE ARC WITHOUT SPATTER AND GOOD
SHAPING.
• WELD WITH MATERIALS SUCH AS STEEL,
STAINLESS STEEL, TITANIUM,
COPPER, NICKEL AND THEIR ALLOYS.
• APPLICATION IN VESSEL, BIKE, DECORATION,
OUTDOOR ADVERTISING, ETC.
• HF TIG
• O.H. INDICATOR
• DIGITAL DISPLAY METER
